Description

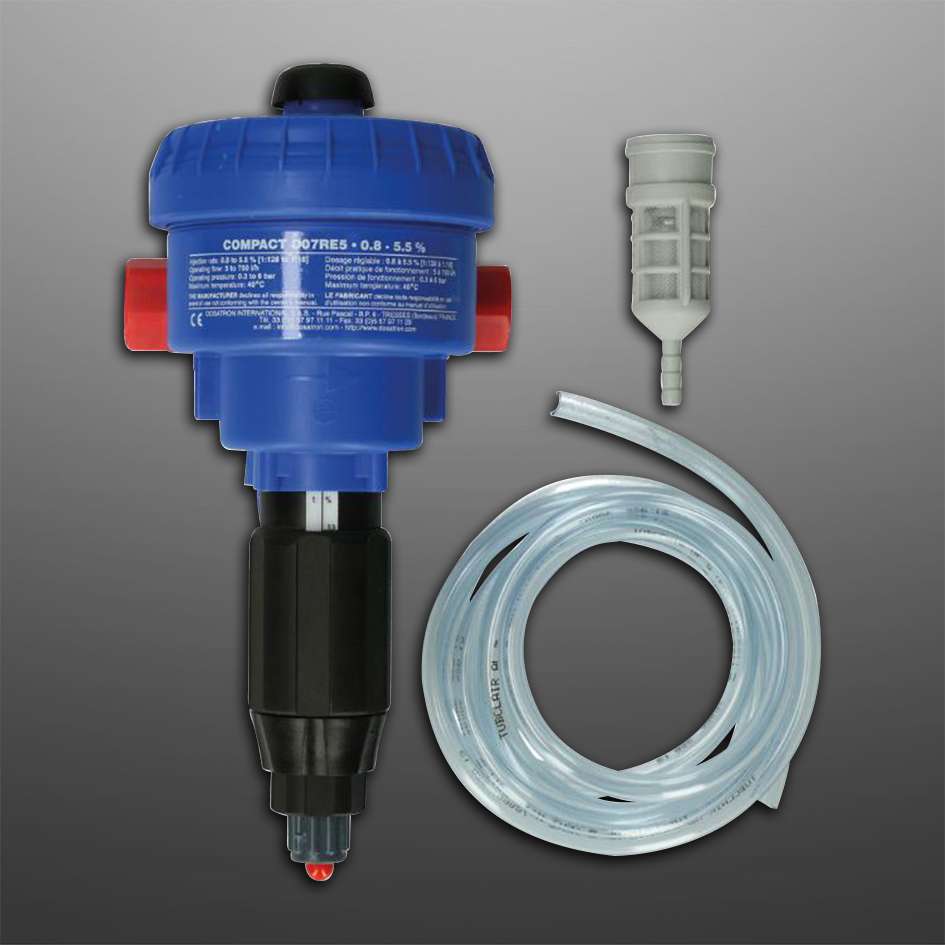

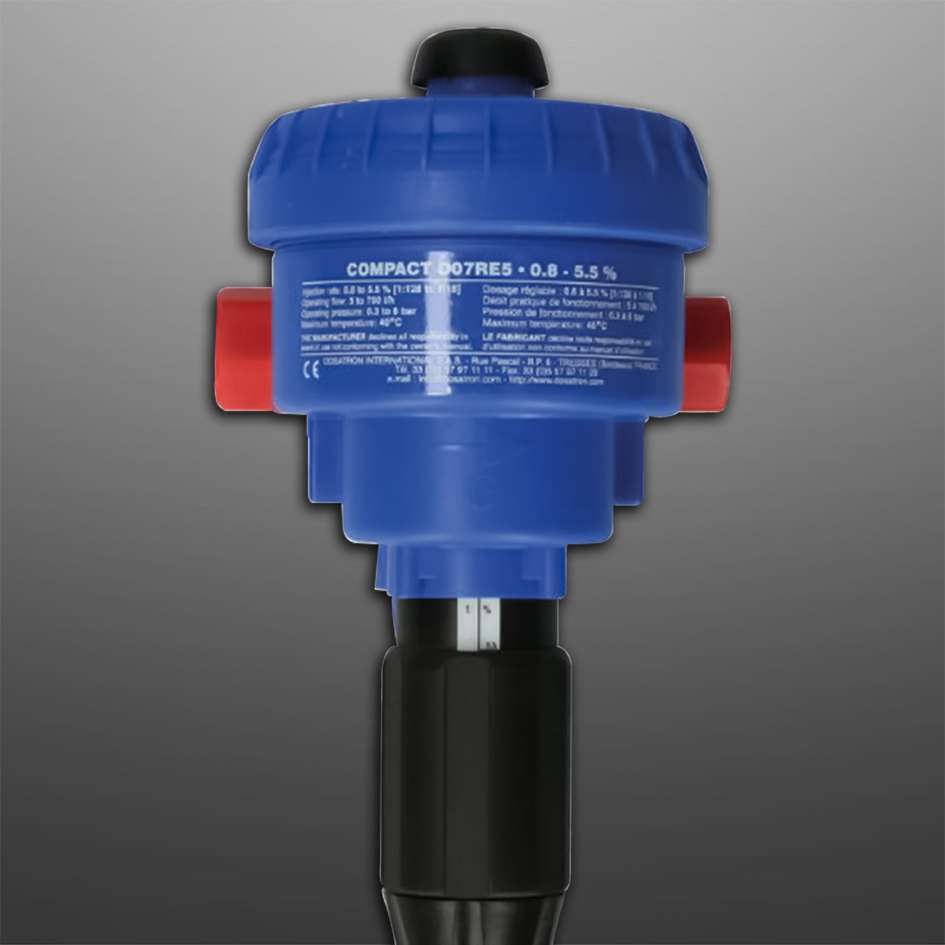

Dosatron D07RE5 – Dosatron units will accurately dose liquid additives proportionately into water without electric power. The D07RE5 model is suitable for applying our biocide products as it has a dose rate of 0.8% (1:125) to 5.5% (1:18). We also have a range of spares for this unit. Please use the parts diagrams at www.labelcompliantbio.org to find your part number and contact us for a price.

The blue delrin unit has a maximum water temperature rating of 40°C.

Flow Rate Minimum: 0.08 litres per min

Flow Rate Maximum: 12 litres per min

Operating Pressure Minimum: 0.3 bar (4 psi)

Operating Pressure Maximum: 6 bar (85 psi)

Connections: ¾” Male BSP

Dilution Rate: 0.8% to 5% v/v (Continuously Variable)

Note: Water Authority regulations state that no chemical dilution equipment may be connected directly to the mains supply.  A suitable backflow prevention device should be installed.

(Dosatron D07RE5 -)
